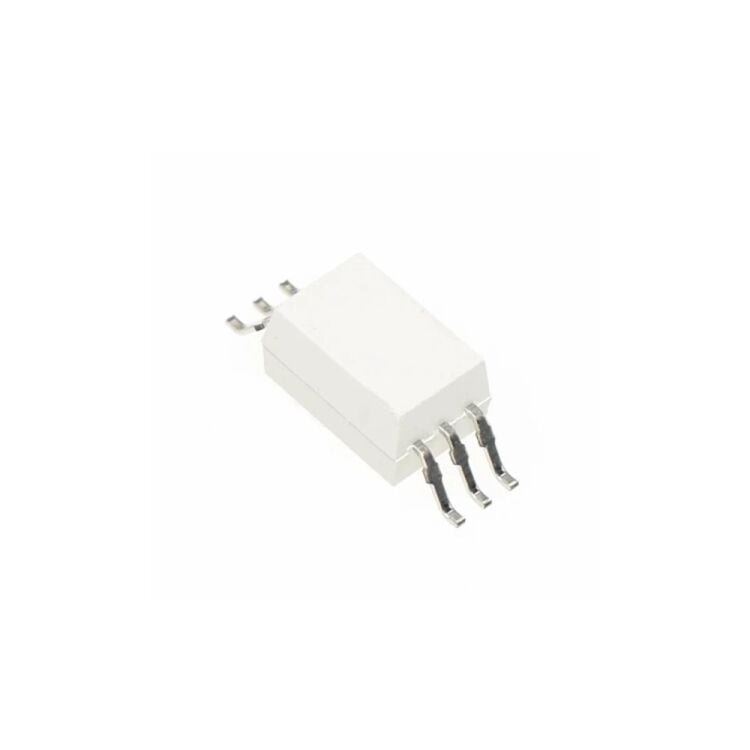

TLP700, P700, SDIP-6 Entegre Devre
75,31 TL
7,88 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLP700
Stok Adedi
0
Fiyat
1,45 USD + KDV
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 100°C |
| Üretici Paket/Kılıf | 6-SDIP Gull Wing |
| Current - Output High- Low | 1.5A- 1.5A |
| Number of Channels | 1 |
| Technology | Optical Coupling |
| Current - Peak Output | 2A |
| Approval Agency | UR |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Rise / Fall Time (Typ) | 50ns- 50ns |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns- 500ns |
| Voltage - Output Supply | 15V ~ 30V |
| Parça Durumu | Active |
