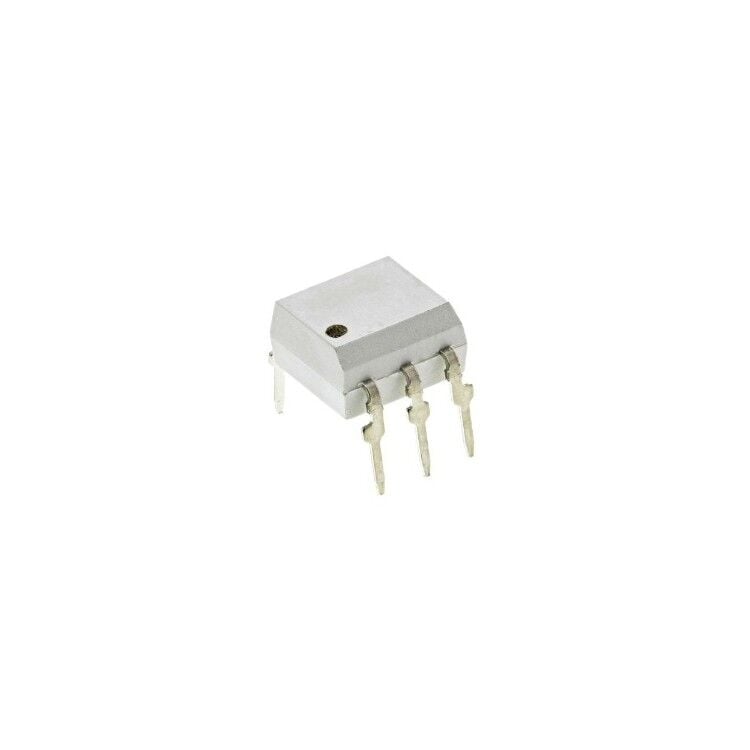

TLP3043, PDIP-5 Entegre Devre Hakkında
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 100°C |
| Üretici Paket/Kılıf | 6-DIP (Cut)- 5 Lead |
| Çıkış Tipi | Triac |
| Number of Channels | 1 |
| Approval Agency | BSI- SEMKO- UR |
| Current - DC Forward (If) (Max) | 50 mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Voltage - Off State | 400 V |
| Voltage - Isolation | 5000Vrms |
| Current - Hold (Ih) | 600µA (Typ) |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Static dV/dt (Min) | 200V/µs |
| Zero Crossing Circuit | Yes |
| Parça Durumu | Last Time Buy |
