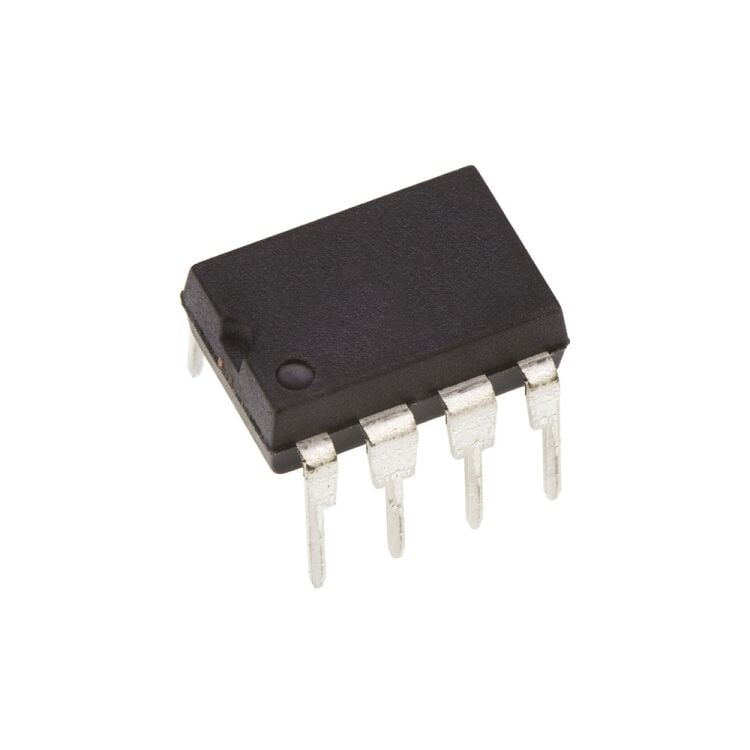

TLP250, DIP-8 Entegre Devre
67,72 TL
7,08 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLP250
Stok Adedi
15
Fiyat
1,30 USD + KDV
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -20°C ~ 85°C |
| Üretici Paket/Kılıf | 8-DIP |
| Current - Output High- Low | 500mA- 500mA |
| Number of Channels | 1 |
| Technology | Optical Coupling |
| Current - Peak Output | 1.5A |
| Approval Agency | UR |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 5kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns- 500ns |
| Voltage - Output Supply | 15V ~ 30V |
| Parça Durumu | Obsolete |
