Görseller temsilidir, tam özellikler için datasheet'e bakınız.

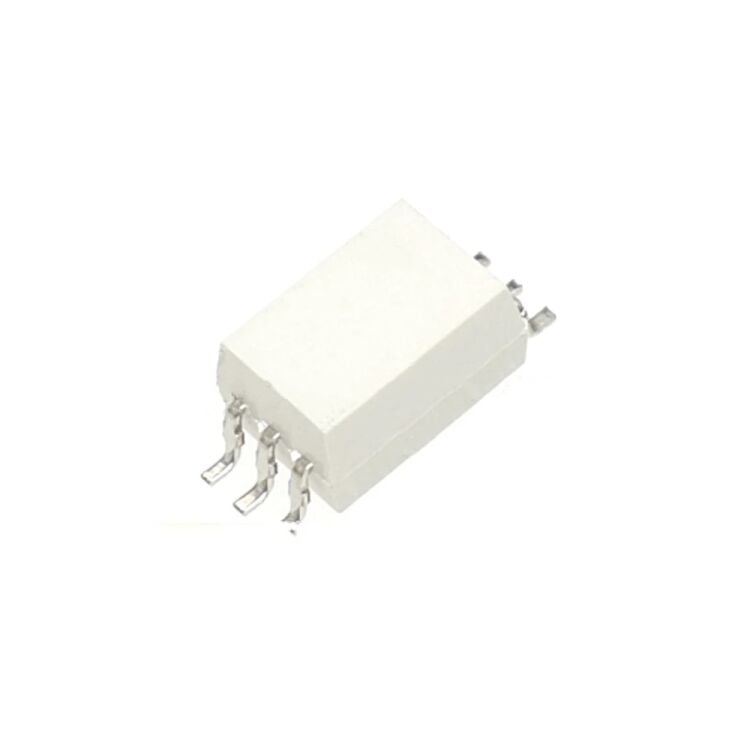

TLP117A, MFSOP-6 Entegre Devre Hakkında
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Voltage - Supply | 4.5V ~ 5.5V |
| Çalışma Sıcaklığı | -40°C ~ 105°C |
| Üretici Paket/Kılıf | 6-MFSOP- 5 Lead |
| Veri Hızı ( Data Rate ) | 50MBd |
| Çıkış Tipi | Push-Pull- Totem Pole |
| Current - Output / Channel | 10 mA |
| Number of Channels | 1 |
| Input Type | DC |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Rise / Fall Time (Typ) | 3ns- 3ns |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Inputs - Side 1/Side 2 | 1/0 |
| Propagation Delay tpLH / tpHL (Max) | 20ns- 20ns |
| Parça Durumu | Last Time Buy |
