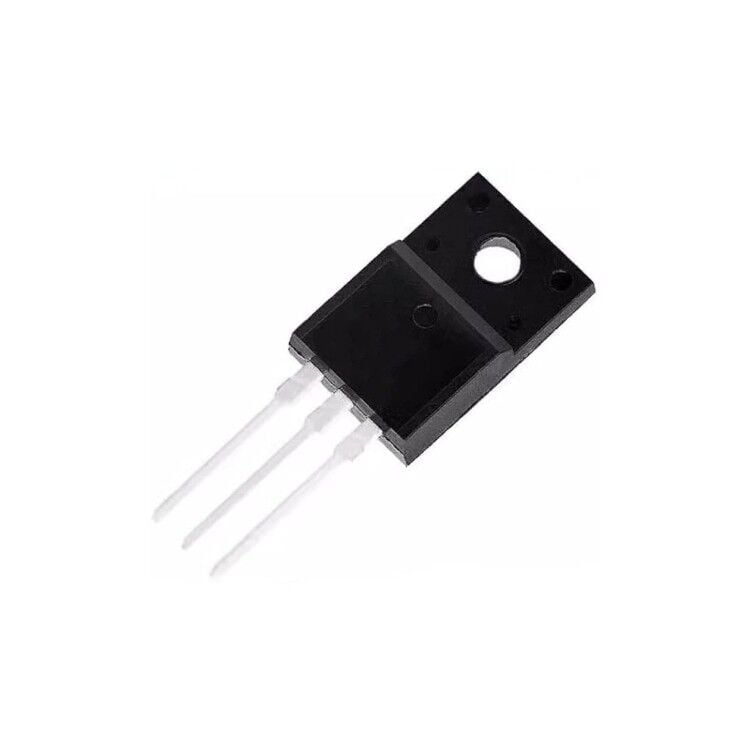

TK3R2A10PL K3R2A10PL TO-220SIS Power Mosfet Transistör
| Kılıf | TO-220-3 Full Pack |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | 175°C |
| Üretici Paket/Kılıf | TO-220SIS |
| Technology | MOSFET (Metal Oxide) |
| Power Dissipation (Max) | 54W (Tc) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 161 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 9500 pF @ 50 V |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| FET Feature | - |
| Drive Voltage (Max Rds On- Min Rds On) | 4.5V 10V |
| Rds On (Max) @ Id- Vgs | 3.2mOhm @ 50A 10V |
