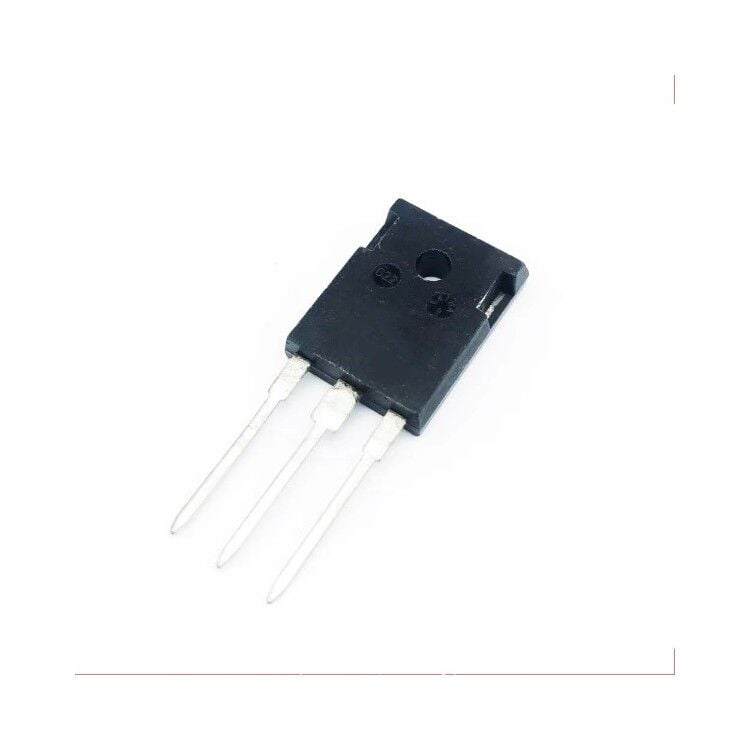

STGW40H60DLFB (GW40H60DLFB) 80A 600V 283W TO-247 IGBT Transistör
208,43 TL
21,80 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
STGW40H60DLFB (GW40H60DLFB) 80A 600V 283W IGBT Transistör
| Kılıf | TO-247-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -55°C ~ 175°C (TJ) |
| Üretici Paket/Kılıf | TO-247 |
| Input Type | Standard |
| Test Condition | 400V 40A 10Ohm 15V |
| Power - Max | 283 W |
| Reverse Recovery Time (trr) | - |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 160 A |
| Gate Charge | 210 nC |
| IGBT Type | Trench Field Stop |
| Switching Energy | 363µJ (off) |
| Td (on/off) @ 25°C | -/142ns |
| Vce(on) (Max) @ Vge- Ic | 2V @ 15V 40A |
