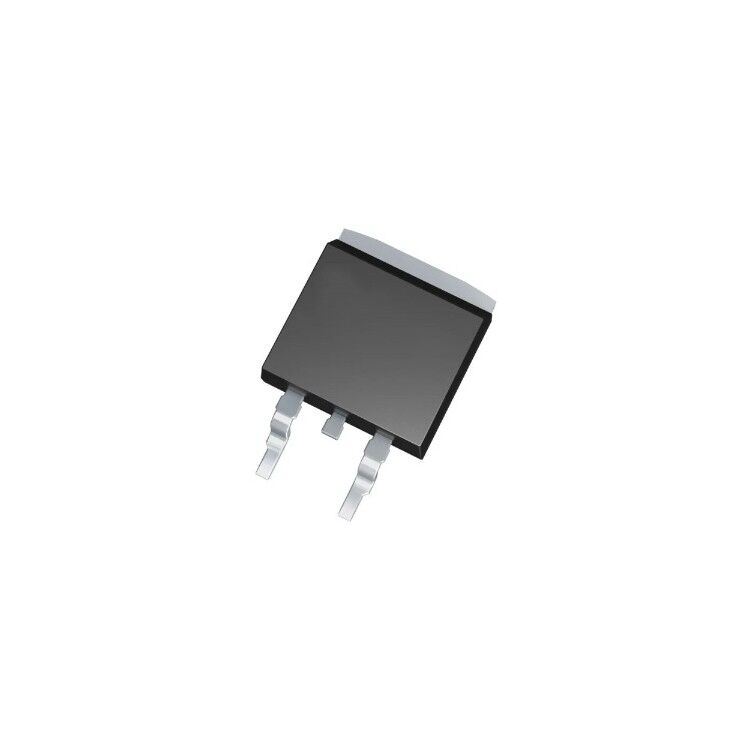

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
ISL9R1560S3S (R1560S3S) 15A 600V TO-263 Diyot
ISL9R1560S3S
- Üretici
- Fairchild
- Kategori
- Kılıf / Paket
- —
ISL9R1560S3S (R1560S3S) 15A 600V TO-263 Diyot Hakkında
ISL9R1560S3S (R1560S3S) 15A 600V TO-263 Diyot
| Kılıf | TO-263-3 D²Pak (2 Leads + Tab) TO-263AB |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | D²PAK (TO-263) |
| Hız | Fast Recovery 500ns 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 15 A |
| Reverse Recovery Time (trr) | 40 ns |
| Current - Average Rectified (Io) | 15A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
