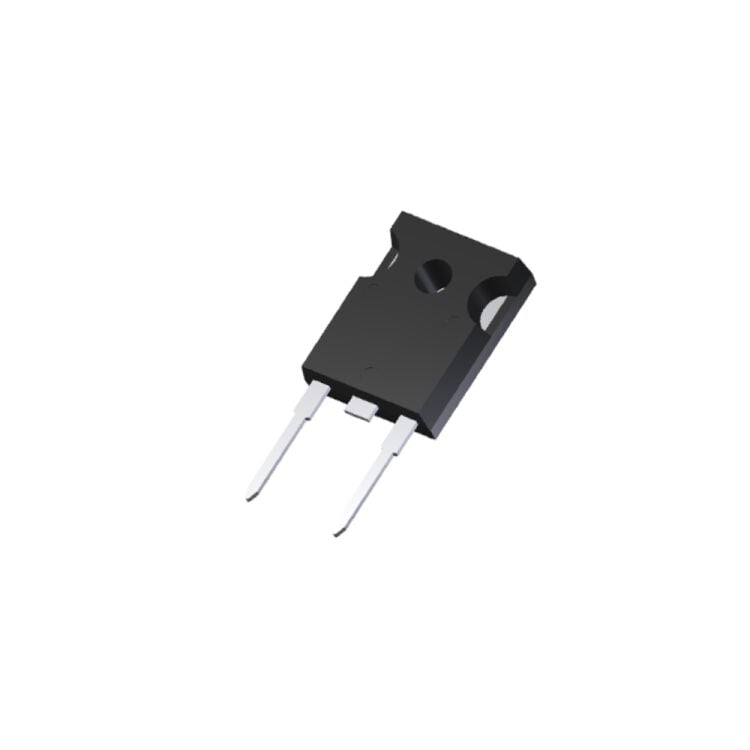

ISL9R1560G2 (R1560G2) 15A 600V TO-247-2 Doğrultucu Diyot
290,94 TL
31,46 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
ISL9R1560G2 (R1560G2) 15A 600V TO-247-2 Doğrultucu Diyot
| Kılıf | TO-247-2 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-247-2 |
| Hız | Fast Recovery 500ns 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 15 A |
| Reverse Recovery Time (trr) | 40 ns |
| Current - Average Rectified (Io) | 15A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
