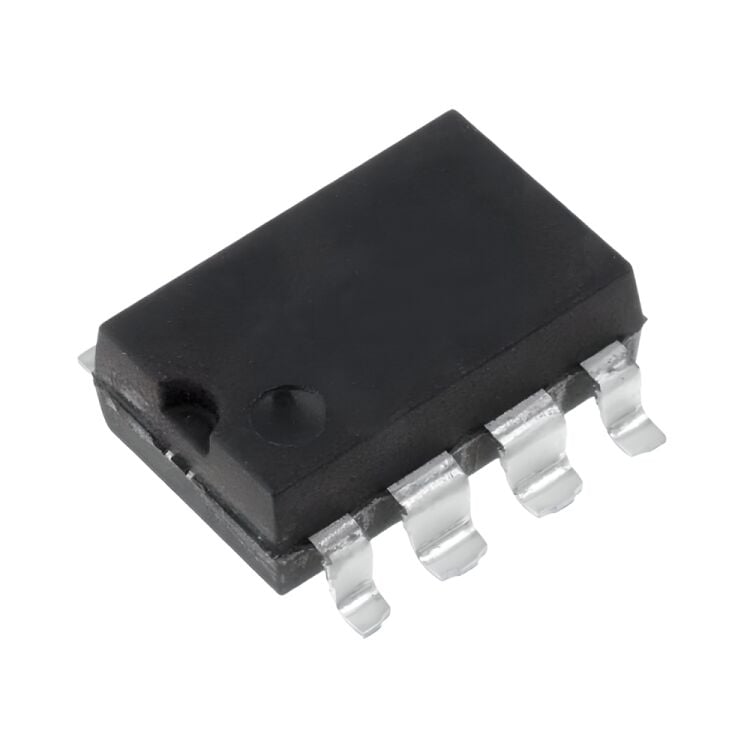

HCPL-3120 (A3120) SMD-8 Optoizolatör
142,83 TL
14,94 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
HCPL-3120
Stok Adedi
0
Fiyat
2,75 USD + KDV
HCPL-3120 (A3120) SMD-8 Optoizolatör OPTOISO 3.75KV GATE DRVR 8DIP GW
| Kılıf | 8-SMD Gull Wing |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Çalışma Sıcaklığı | -40°C ~ 100°C |
| Üretici Paket/Kılıf | 8-DIP Gull Wing |
| Current - Output High- Low | 2A 2A |
| Number of Channels | 1 |
| Technology | Optical Coupling |
| Current - Peak Output | 2.5A |
| Approval Agency | CSA UR |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Rise / Fall Time (Typ) | 100ns 100ns |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Voltage - Output Supply | 15V ~ 30V |
Bu ürüne ilk yorumu siz yapın!
