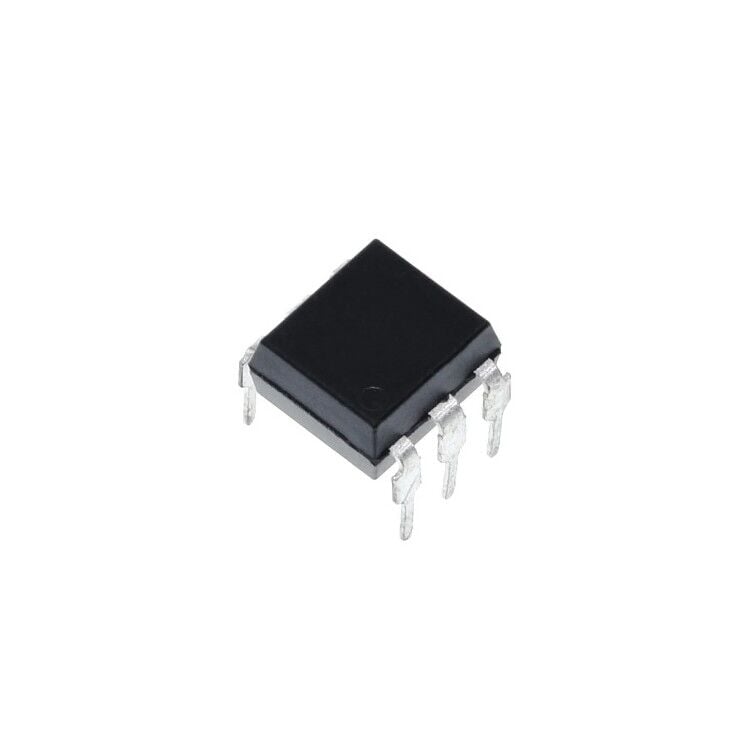

HCPL-3120-060E (A3120) DIP-6 Optoizolatör Hakkında
HCPL-3120-060E (A3120) DIP-6 Optoizolatör OPTOISO 3.75KV 1CH GATE DVR 8DIP
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 100°C |
| Üretici Paket/Kılıf | 8-DIP |
| Current - Output High- Low | 2A 2A |
| Number of Channels | 1 |
| Technology | Optical Coupling |
| Current - Peak Output | 2.5A |
| Approval Agency | CSA IEC/EN/DIN UR |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Rise / Fall Time (Typ) | 100ns 100ns |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Voltage - Output Supply | 15V ~ 30V |
