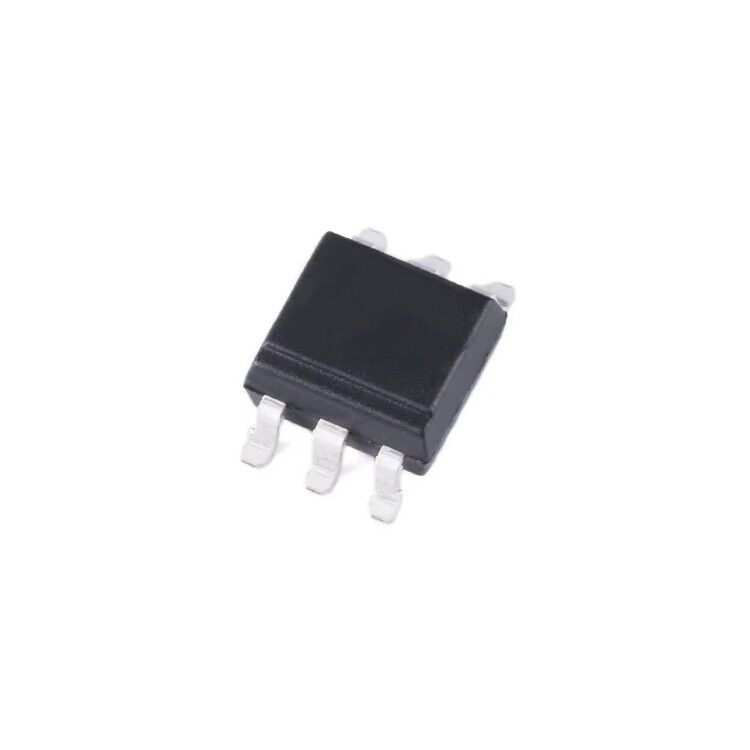

ACPL-P314-500E (P314) SMD-6 Optoizolatör
234,48 TL
24,53 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
ACPL-P314-500E
Stok Adedi
30
Fiyat
4,50 USD + KDV
ACPL-P314-500E (P314) SMD-6 Optoizolatör OPTOISO 3.75KV 1CH GATE DRVR 6SO
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 100°C |
| Üretici Paket/Kılıf | 6-SO |
| Current - Output High- Low | 400mA 400mA |
| Number of Channels | 1 |
| Technology | Optical Coupling |
| Current - Peak Output | 600mA |
| Approval Agency | CSA UR |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Rise / Fall Time (Typ) | 50ns 50ns |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 700ns 700ns |
| Pulse Width Distortion (Max) | - |
| Voltage - Output Supply | 10V ~ 30V |
