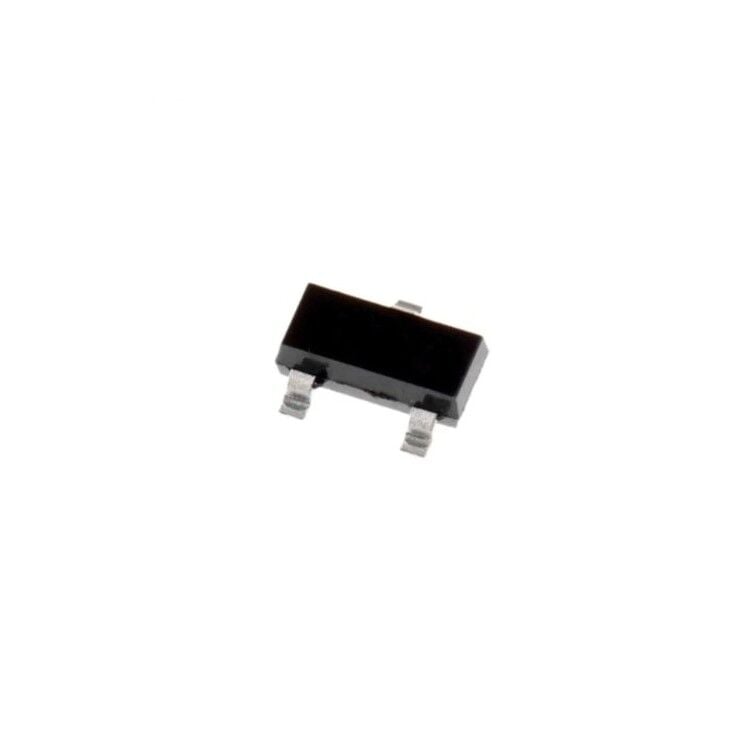

GSOT05C-E3-08 5V 480W SOT-23 TVS Diyot
| Kılıf | TO-236-3 SC-59 SOT-23-3 |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Çalışma Sıcaklığı | -55°C ~ 150°C (TJ) |
| Üretici Paket/Kılıf | SOT-23-3 |
| Uygulamalar | General Purpose |
| Tip | Zener |
| Capacitance @ Frequency | 260pF @ 1MHz |
| Bidirectional Channels | - |
| Current - Peak Pulse (10/1000µs) | 30A (8/20µs) |
| Power - Peak Pulse | 480W |
| Power Line Protection | No |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 16V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
