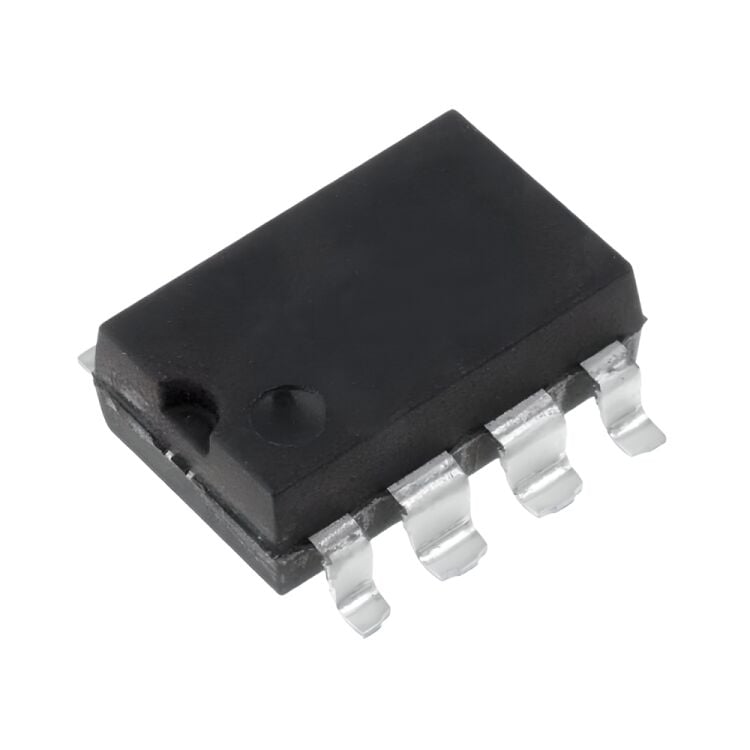

FOD3120SD SMD-8 Optoizolatör
143,28 TL
14,99 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
FOD3120SD
Stok Adedi
30
Fiyat
2,75 USD + KDV
FOD3120SD SMD-8 Optoizolatör OPTOISO 5KV 1CH GATE DRIVER 8SMD
| Kılıf | 8-SMD Gull Wing |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Çalışma Sıcaklığı | -40°C ~ 100°C |
| Üretici Paket/Kılıf | 8-SMD |
| Current - Output High- Low | 2A 2A |
| Number of Channels | 1 |
| Technology | Optical Coupling |
| Current - Peak Output | 3A |
| Approval Agency | UL |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Rise / Fall Time (Typ) | 60ns 60ns |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 400ns 400ns |
| Pulse Width Distortion (Max) | 100ns |
| Voltage - Output Supply | 15V ~ 30V |
