Görseller temsilidir, tam özellikler için datasheet'e bakınız.
DSP8-08AS 800V 11A TO263-3 (D2PAK-3) Diyot Hakkında

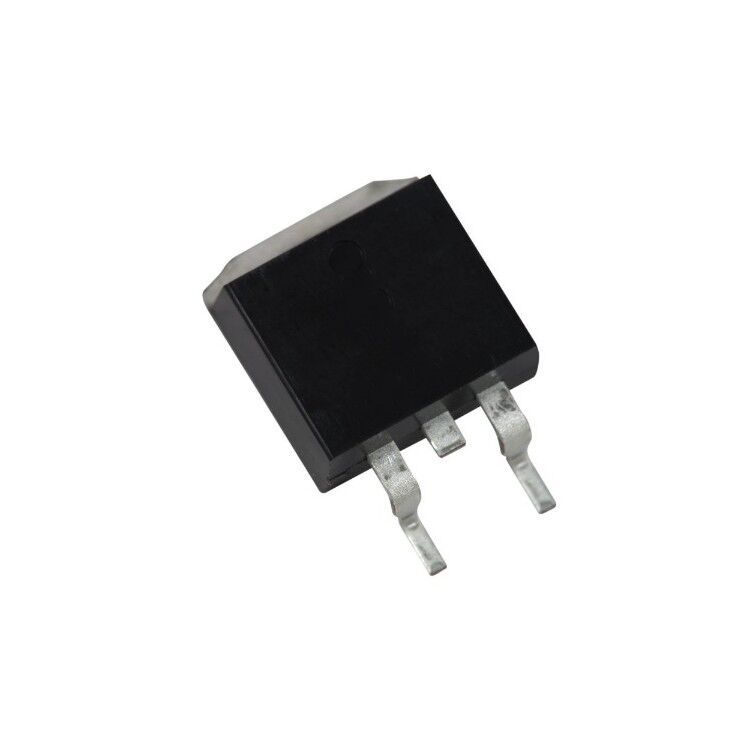

DSP8-08AS 800V 11A TO263-3 (D2PAK-3) Diyot
| Kılıf | TO-263-4 D²Pak (3 Leads + Tab) TO-263AA |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | TO-263 (D2Pak) |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 7 A |
| Reverse Recovery Time (trr) | - |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Current - Average Rectified (Io) (per Diode) | 11A |
| Diode Configuration | 1 Pair Series Connection |
