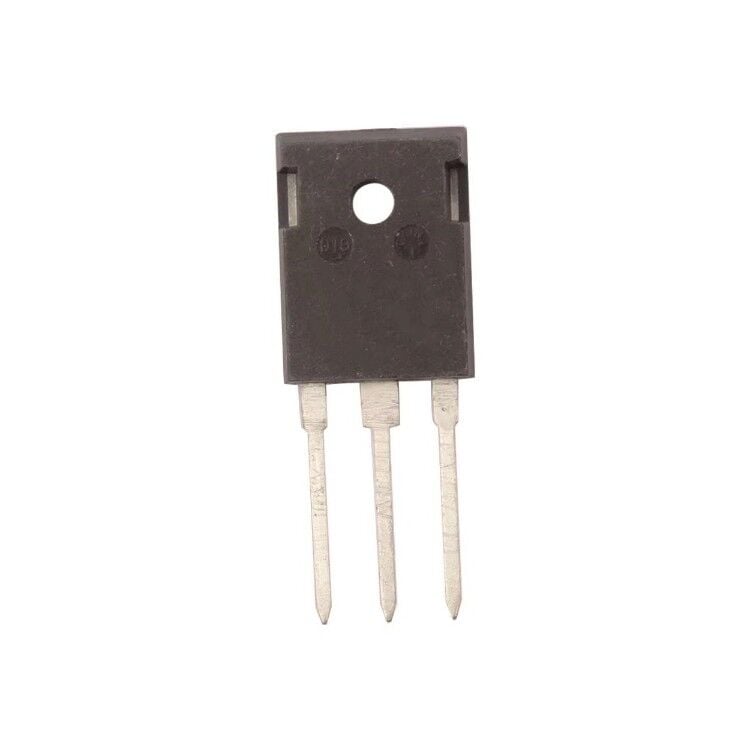

DSP25-12A 1200V 28A TO247-3 Diyot
166,21 TL
17,39 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
DSP25-12A 1200V 28A TO247-3 Diyot
| Kılıf | TO-247-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-247AD |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 2 mA @ 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 55 A |
| Reverse Recovery Time (trr) | - |
| Diode Type | Standard |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 28A |
| Diode Configuration | 1 Pair Series Connection |
Bu ürüne ilk yorumu siz yapın!
