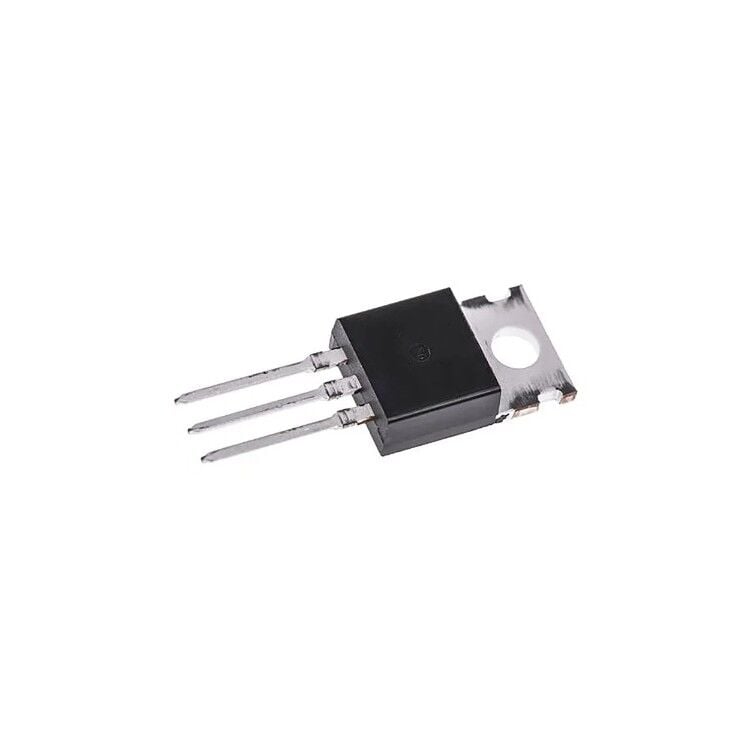

BT145-800R (BT145-800) 25A 800V TO-220 Tristör
101,28 TL
10,60 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
BT145-800R (BT145-800) 25A 800V TO-220 Tristör
| Kılıf | TO-220-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Üretici Paket/Kılıf | TO-220AB |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 300A 330A |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - Off State | 800 V |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 1 mA |
| Current - On State (It (AV)) (Max) | 16 A |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 1.5 V |
