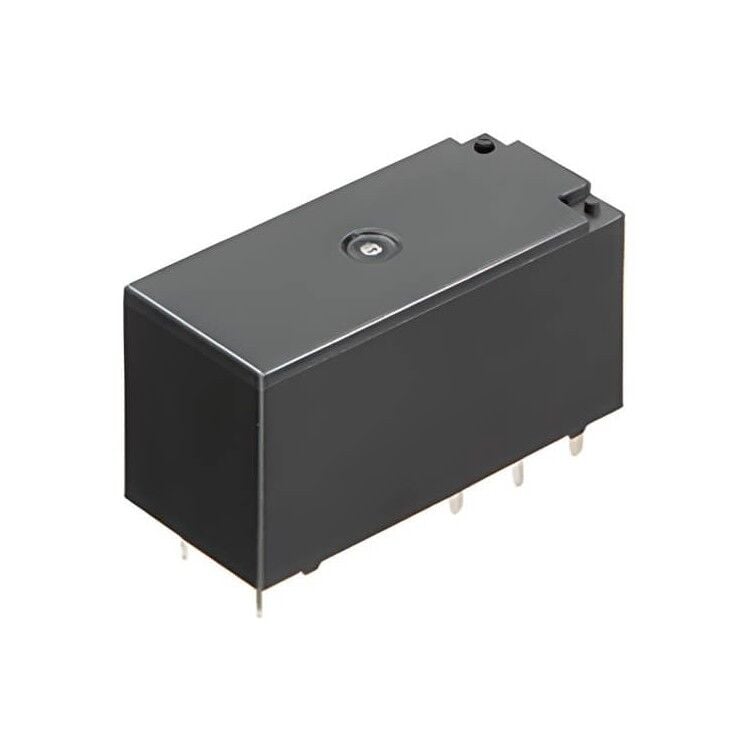

ALZN1B12, 16A 12VDC Panasonic Röle
ALZN1B12
- Üretici
- Panasonic
- Kategori
- Kılıf / Paket
- —
- Aile / Seri
- ALZN1B12
ALZN1B12, 16A 12VDC Panasonic Röle Hakkında
ALZN1B12W, ALZN1B12, 1 Form C (SPDT), 16A 12VDC 8 Pin Röle
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Termination Style | PC Pin |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Switching Voltage | 440VAC - Max |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class B |
| Catalog | Power Relays- Over 2 Amps |
