Görseller temsilidir, tam özellikler için datasheet'e bakınız.
ALZ11B18 18V DC 16A 1 Form C 8 Pin Röle Hakkında

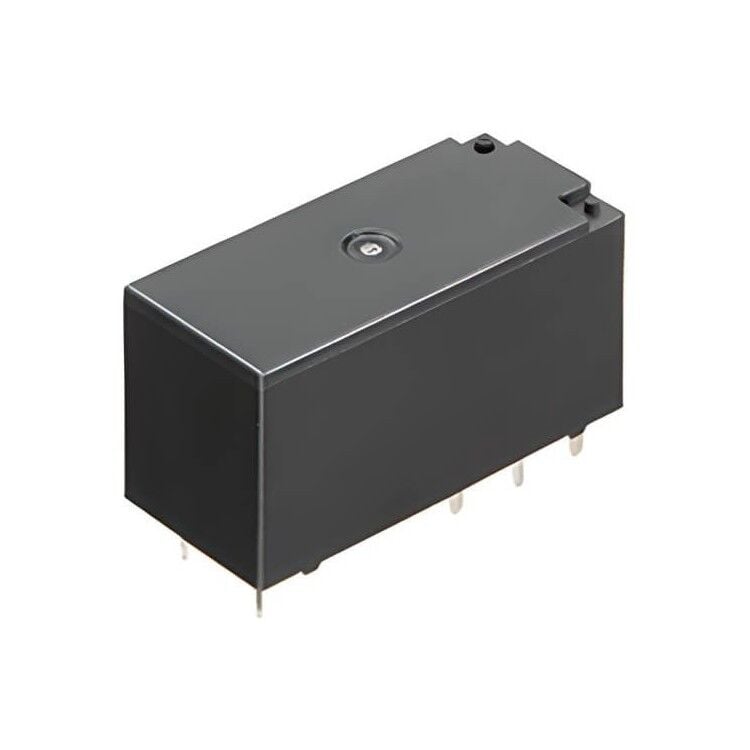

ALZ11B18 18V DC 16A 1 Form C 8 Pin Röle
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 85°C |
| Features | - |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Termination Style | PC Pin |
| Coil Voltage | 18VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Must Operate Voltage | 12.6 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Switching Voltage | 440VAC - Max |
| Coil Current | 22.2 mA |
| Coil Type | Non Latching |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class B |
