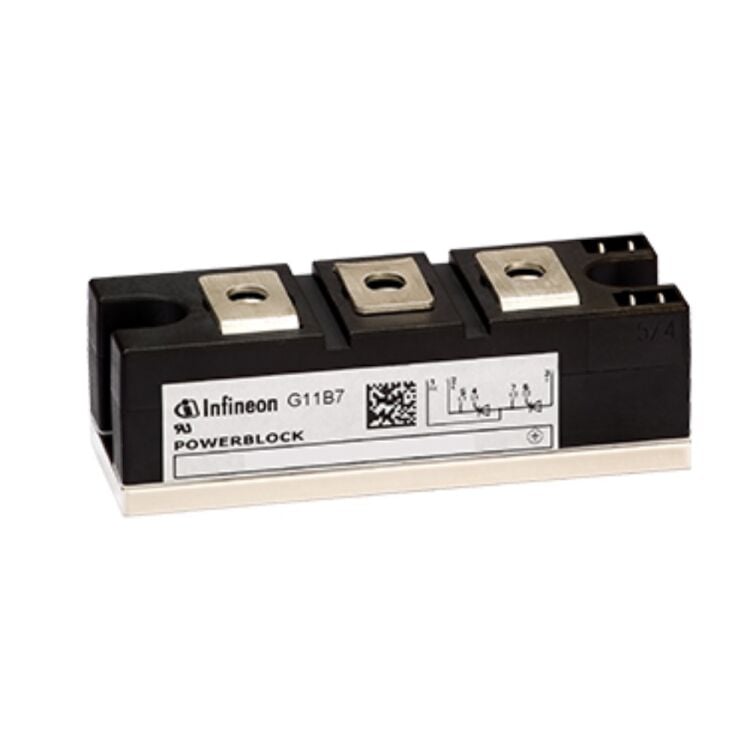

TT162N16KOF 260A 1600V Modül Tristör
5.453,77 TL
589,66 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
TT162N16KOF 260A 1600V Modül Tristör
| Kılıf | Module |
|---|---|
| Montaj Tipi | Chassis Mount |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 5200A @ 50Hz |
| Current - On State (It (RMS)) (Max) | - |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 1.6 kV |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - On State (It (AV)) (Max) | 162 A |
| Number of SCRs- Diodes | 2 SCRs |
| Structure | Series Connection - All SCRs |
