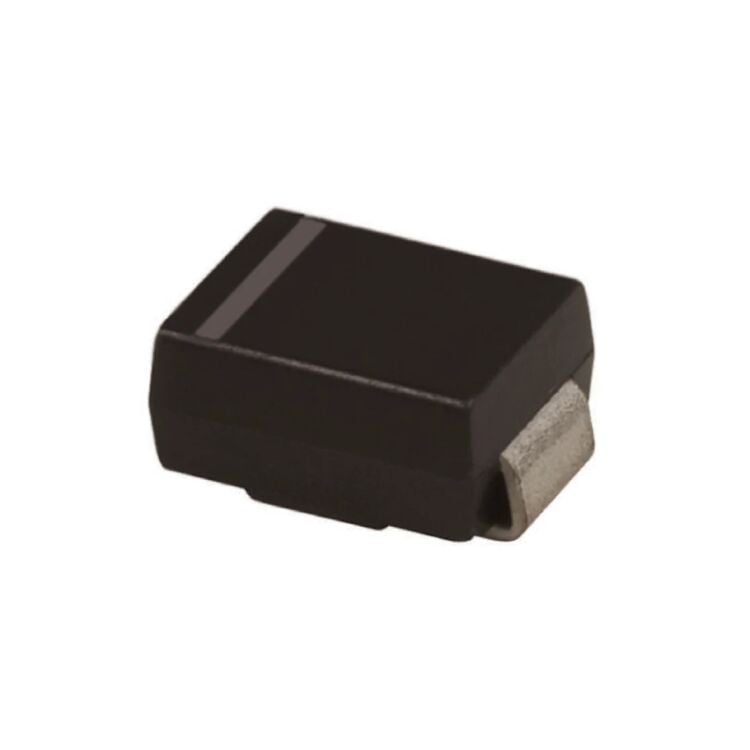

S2G (S2G_R1_00001) 400V 2A DO214AA (SMB) Diyot
3,64 TL
0,38 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
S2G (S2G_R1_00001) 400V 2A DO214AA (SMB) Diyot
| Kılıf | DO-214AA SMB |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | SMB (DO-214AA) |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Reverse Recovery Time (trr) | - |
| Current - Average Rectified (Io) | 2A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Capacitance @ Vr- F | 30pF @ 4V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
