DH60-14A 1400V 60A TO247-2 Diyot
728,41 TL
76,20 TL den başlayan taksitlerle!
0 Puan / 0 Yorum

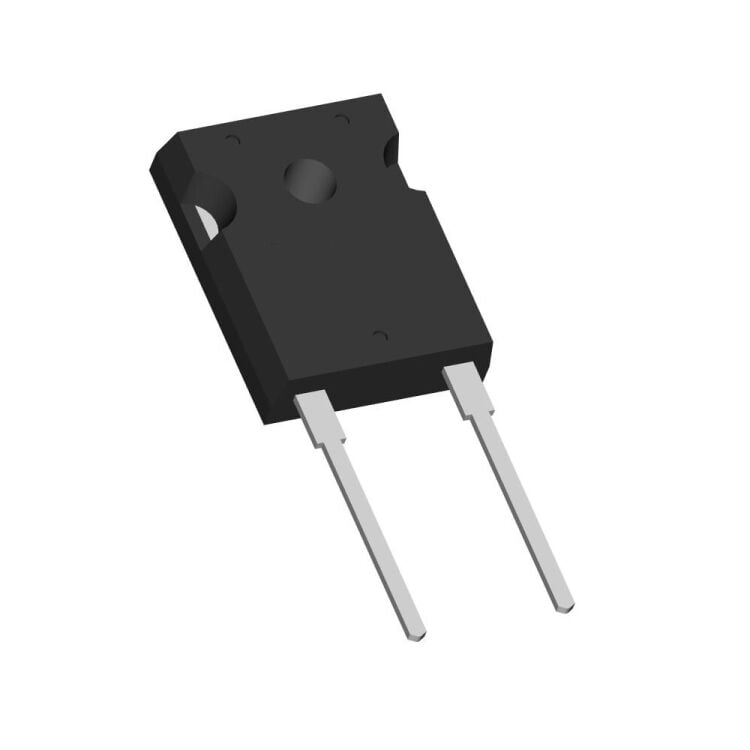

DH60-14A 1400V 60A TO247-2 Diyot
| Kılıf | TO-247-2 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-247AD |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 2.04 V @ 60 A |
| Reverse Recovery Time (trr) | 230 ns |
| Current - Average Rectified (Io) | 60A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Capacitance @ Vr- F | 32pF @ 1200V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 1400 V |
