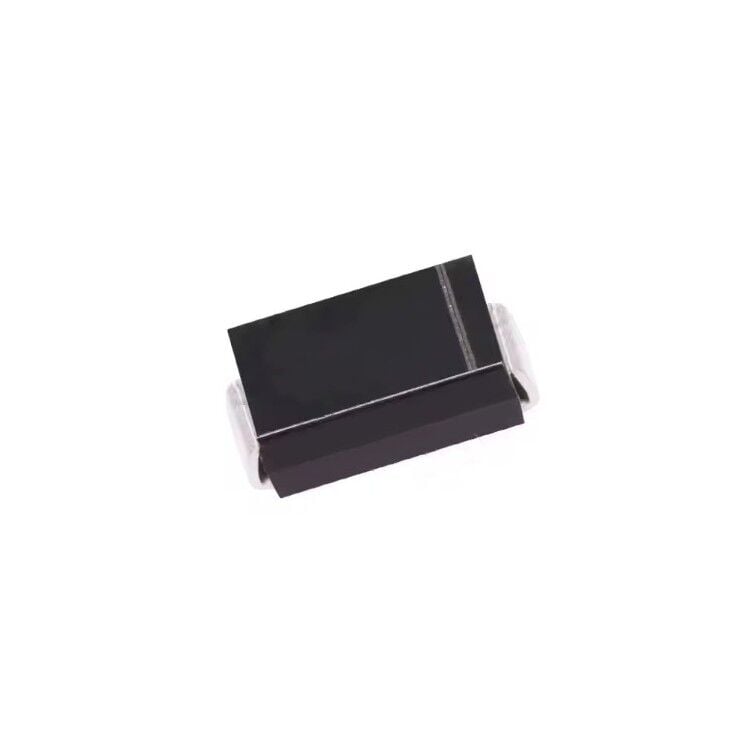

BYG20D (BYG20D-E3/TR) 200V 1.5A DO214AC (SMA) Diyot
6,25 TL
0,65 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
BYG20D (BYG20D-E3/TR) 200V 1.5A DO214AC (SMA) Diyot
| Kılıf | DO-214AC SMA |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | DO-214AC (SMA) |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1.5 A |
| Reverse Recovery Time (trr) | 75 ns |
| Current - Average Rectified (Io) | 1.5A |
| Diode Type | Avalanche |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
