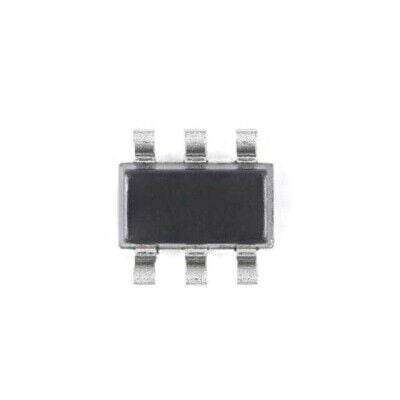

UMW SGM3157 SC70-6 (SOT-363) 2:1 Analog Switch Entegre Devre
36,09 TL
3,78 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SGM3157
Stok Adedi
0
Fiyat
0,67 USD + KDV
UMW SGM3157, SC70-6 (SOT-363) kılıfta 1 devreli 2:1 analog anahtar/multiplexer entegresidir (SPDT NO/NC). 1.65V–5.5V besleme aralığında çalışır, tipik 7Ω iletim direncine ve 350MHz bant genişliğine sahiptir. Yüzey montaj uygulamaları için uygundur ve -55°C ile 125°C arasında çalışır.
SGM3157 6-VSSOP, SC-88, SOT-363 kılıfta üretilmiştir. 1 Circuit IC Switch 2:1 7Ohm (Typ) SC70-6
| Ürün Kodu | SGM3157 |
| Switch Circuit | SPDT - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 7Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 150mOhm (Typ) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| -3db Bandwidth | 350MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 2.3pF |
| Current - Leakage (IS(off)) (Max) | 100nA (Max) |
| Crosstalk | -54dB @ 10MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC70-6 |
SGM3157 Datasheet dosyasına ulaşmak için tıklayınız.
