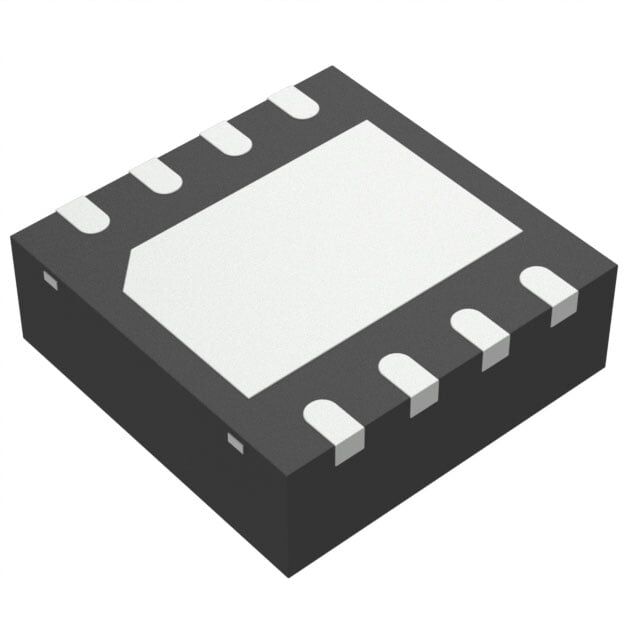

TPS746115PQWDRBRQ1 8-SON(3x3) 1.15V 1A LDO Entegre Devre
93,68 TL
9,80 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS746115PQWDRBRQ1
Stok Adedi
0
Fiyat
1,74 USD + KDV
Texas Instruments TPS746115PQWDRBRQ1, 6V maksimum girişe sahip 1.15V sabit çıkışlı 1A LDO regülatördür. 36 µA düşük boşta akım, Enable ve Power Good pinleri ile -40°C ile 125°C çalışma aralığı sunar. Aşırı akım, aşırı sıcaklık ve UVLO korumaları bulunur; 8-VDFN exposed pad / 8-SON(3x3) SMD pakettedir.
TPS746115PQWDRBRQ1 AUTOMOTIVE 1-A, LOW-IQ, HIGH-PSR
| Ürün Kodu | TPS746115PQWDRBRQ1 |
| Control Features | Enable, Power Good |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 36 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 8-VDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 53dB ~ 30dB (1kHz ~ 1MHz) |
| Supplier Device Package | 8-SON (3x3) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.15V |
| Voltage Dropout (Max) | 0.79V @ 1A |
