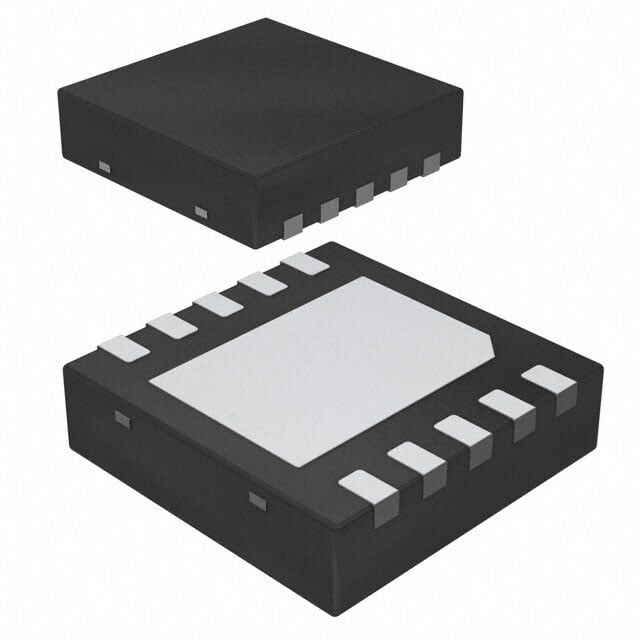

TPS63060DSCR Texas Instruments 10-WSON(3x3) Entegre Devre
231,62 TL
24,23 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS63060DSCR
Stok Adedi
0
Fiyat
4,30 USD + KDV
TPS63060DSCR, Texas Instruments üretimi ayarlanabilir buck-boost (step-up/step-down) DC-DC regülatör entegresidir. 2.5V-12V giriş aralığında çalışır, 2.5V-8V arası ayarlanabilir pozitif çıkış sağlar ve 2A anahtarlama akımı destekler. 2.4MHz anahtarlama frekansına sahiptir ve 10-WSON (3x3) SMD pakettedir.
TPS63060DSCR IC REG BCK BST ADJ 2A 10WSON
| Ürün Kodu | TPS63060DSCR |
| Current - Output | 2A (Switch) |
| Frequency - Switching | 2.4MHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 10-WFDFN Exposed Pad |
| Part Status | Active |
| Supplier Device Package | 10-WSON (3x3) |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
| Voltage - Input (Max) | 12V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | 8V |
| Voltage - Output (Min/Fixed) | 2.5V |
TPS63060DSCR Datasheet dosyasına ulaşmak için tıklayınız.
