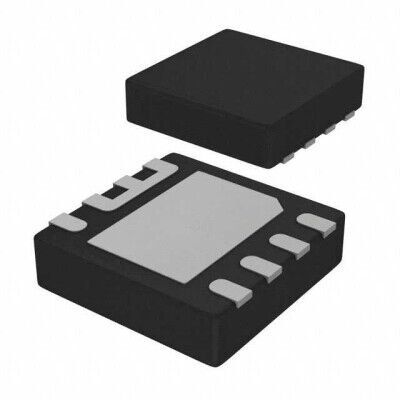

TPS22961DNYT Texas Instruments 8-WSON(3x3) Entegre Devre
165,44 TL
17,31 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS22961DNYT
Stok Adedi
0
Fiyat
3,07 USD + KDV
TPS22961DNYT, Texas Instruments üretimi N-kanal yüksek taraf güç anahtarı entegresidir ve 8-WSON (3x3) kılıfta sunulur. 3V-5.5V yük gerilimi aralığında 6A’e kadar çıkış akımı destekler, tipik 6.5mOhm Rds(on) değerine sahiptir. Yük boşaltma ve slew rate kontrollü anahtarlama özellikleri bulunur.
TPS22961DNYT IC PWR SWITCH N-CHAN 1:1 8WSON
| Ürün Kodu | TPS22961DNYT |
| Current - Output (Max) | 6A |
| Fault Protection | - |
| Features | Load Discharge, Slew Rate Controlled |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 8-WDFN Exposed Pad |
| Part Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | 6.5mOhm |
| Supplier Device Package | 8-WSON (3x3) |
| Switch Type | General Purpose |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 0.8V ~ 5.5V |
TPS22961DNYT Datasheet dosyasına ulaşmak için tıklayınız.
