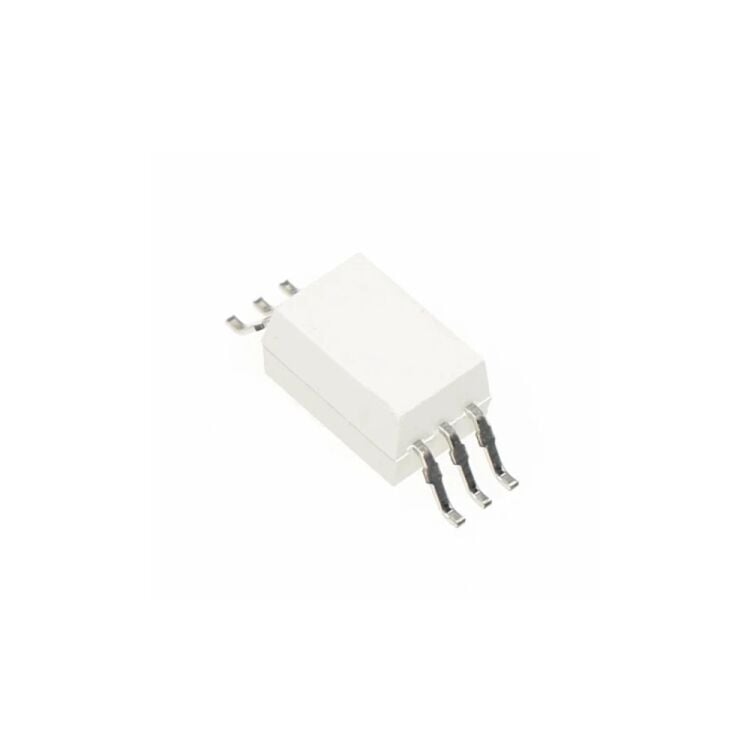

TLP700A(F), SDIP-6 Entegre Devre
103,16 TL
10,79 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLP700A(F)
Stok Adedi
2
Fiyat
1,98 USD + KDV
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 110°C |
| Üretici Paket/Kılıf | 6-SDIP |
| Current - Output High- Low | 2A- 2A |
| Number of Channels | 1 |
| Technology | Optical Coupling |
| Current - Peak Output | 2.5A |
| Approval Agency | cUR- UR- VDE |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Rise / Fall Time (Typ) | 15ns- 8ns |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns- 200ns |
| Pulse Width Distortion (Max) | 50ns |
| Voltage - Output Supply | 15V ~ 30V |
| Parça Durumu | Active |
Bu ürüne ilk yorumu siz yapın!
