SN74HC4851PW Texas Instruments 8:1 MUX/DEMUX 16-TSSOP Entegre Devre
93,58 TL
9,79 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SN74HC4851PW
Stok Adedi
1
Fiyat
1,75 USD + KDV

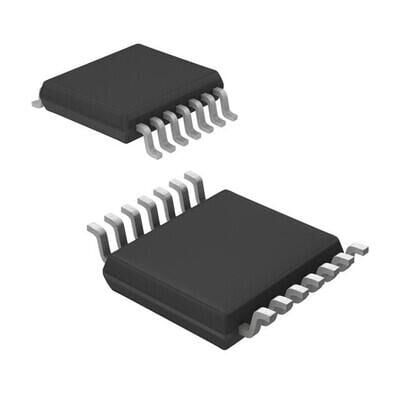

SN74HC4851PW, Texas Instruments üretimi 8:1 multiplexer/demultiplexer entegresidir ve 16-TSSOP SMD pakettedir. 2V–6V tek besleme ile çalışır, çalışma sıcaklığı aralığı -40°C ile 125°C’dir. Maksimum iletim direnci 195 Ohm, anahtarlama süreleri (Ton/Toff) 78ns/78ns olarak verilir.
SN74HC4851PW IC MUX/DEMUX 8X1 16TSSOP
| Ürün Kodu | SN74HC4851PW |
| -3db Bandwidth | - |
| Channel Capacitance (CS(off), CD(off)) | 22pF |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Charge Injection | - |
| Crosstalk | - |
| Current - Leakage (IS(off)) (Max) | 200nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 195Ohm |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Part Status | Active |
| Supplier Device Package | 16-TSSOP |
| Switch Circuit | - |
| Switch Time (Ton, Toff) (Max) | 78ns, 78ns |
| Voltage - Supply, Dual (V±) | - |
| Voltage - Supply, Single (V+) | 2V ~ 6V |
SN74HC4851PW Datasheet dosyasına ulaşmak için tıklayınız.
