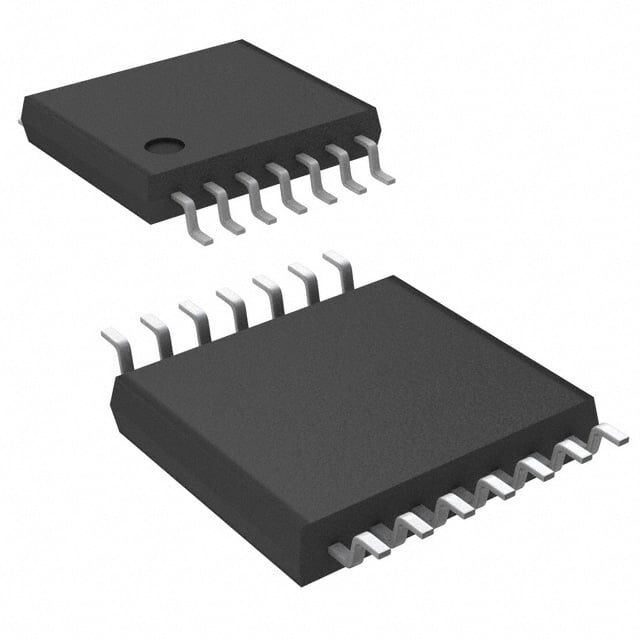

LM324PT 14-TSSOP Dörtlü Op-Amp Entegre Devre
20,84 TL
2,18 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM324PT
Stok Adedi
1
Fiyat
0,39 USD + KDV
STMicroelectronics LM324PT, genel amaçlı 4 kanallı (quad) operasyonel yükselteç entegresidir. 14-TSSOP SMD pakettedir; 3 V ile 30 V besleme aralığında çalışır. 800 kHz kazanç-bant genişliği ve 0.4 V/µs slew rate değerine sahiptir.
LM324PT IC OPAMP GP 4 CIRCUIT 14TSSOP
| Ürün Kodu | LM324PT |
| -3db Bandwidth | - |
| Amplifier Type | General Purpose |
| Current - Input Bias | 20 nA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 1.5mA |
| Gain Bandwidth Product | 800 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature | 0°C ~ 70°C |
| Output Type | - |
| Part Status | Active |
| Slew Rate | 0.4V/µs |
| Supplier Device Package | 14-TSSOP |
| Voltage - Input Offset | 2 mV |
| Voltage - Supply Span (Max) | 30 V |
| Voltage - Supply Span (Min) | 3 V |
