Görseller temsilidir, tam özellikler için datasheet'e bakınız.

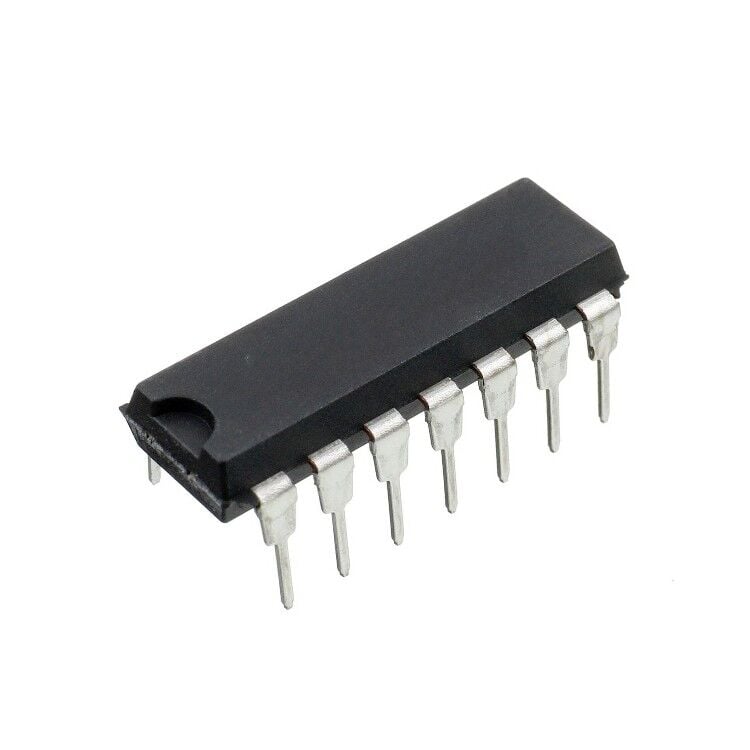

LM324N, DIP-14 OpAmp Amplifier Entegre Devre
LM324N
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
LM324N, DIP-14 OpAmp Amplifier Entegre Devre Hakkında
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | 0°C ~ 70°C (TJ) |
| Current - Supply | 1.5mA |
| Current - Input Bias | 45 nA |
| Current - Output / Channel | 40 mA |
| Gain Bandwidth Product | 1.2 MHz |
| Number of Circuits | 4 |
| Voltage - Input Offset | 2 mV |
| Voltage - Supply Span (Max) | 32 V |
| Voltage - Supply Span (Min) | 3 V |
| Amplifikatör Tipi | General Purpose |
| Catalog | Linear - Amplifiers - Instrumentation- OP Amps- Buffer Amps |
