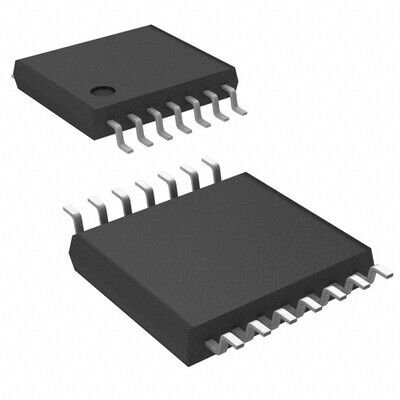

LM324APWR Texas Instruments 14-TSSOP Dörtlü Op-Amp Entegre Devre
24,85 TL
2,60 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM324APWR
Stok Adedi
1
Fiyat
0,46 USD + KDV
LM324APWR, Texas Instruments üretimi genel amaçlı 4 kanallı (quad) operasyonel yükselteç entegresidir. 14-TSSOP SMD pakette sunulur; 3 V ile 30 V besleme aralığında çalışır ve 1.2 MHz kazanç-bant genişliği ile 0.5 V/µs slew rate değerine sahiptir.
LM324APWR IC OPAMP GP 4 CIRCUIT 14TSSOP
| Ürün Kodu | LM324APWR |
| -3db Bandwidth | - |
| Amplifier Type | General Purpose |
| Current - Input Bias | 15 nA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 1.4mA (x4 Channels) |
| Gain Bandwidth Product | 1.2 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Type | - |
| Part Status | Active |
| Slew Rate | 0.5V/µs |
| Supplier Device Package | 14-TSSOP |
| Voltage - Input Offset | 2 mV |
| Voltage - Supply Span (Max) | 30 V |
| Voltage - Supply Span (Min) | 3 V |
LM324APWR Datasheet dosyasına ulaşmak için tıklayınız.
