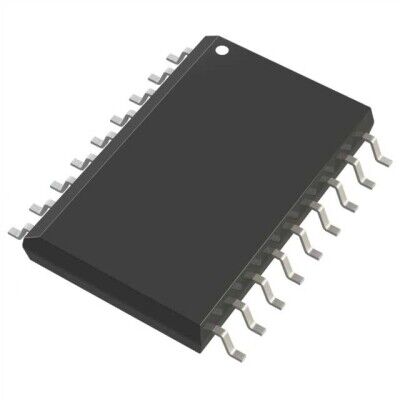

DG529CWN+ Maxim 2 Devre SP4T 4:1 Analog Switch Entegre Devre
740,24 TL
77,44 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
DG529CWN+
Stok Adedi
0
Fiyat
14,00 USD + KDV
DG529CWN+; 2 devreli SP4T (4:1) analog anahtar/multiplexer entegresidir. 5V-30V tek besleme veya ±4.5V-20V çift besleme ile çalışır, maksimum 450Ω Ron değerine sahiptir. 18-SOIC SMD kılıftadır ve anahtarlama süresi maks. 1.5µs (Ton/Toff) olarak belirtilmiştir.
DG529CWN+ 18-SOIC (0.295", 7.50mm Width) kılıfta üretilmiştir. 2 Circuit IC Switch 4:1 450Ohm 18-SOIC
| Ürün Kodu | DG529CWN+ |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1.5µs |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC |
DG529CWN+ Datasheet dosyasına ulaşmak için tıklayınız.
