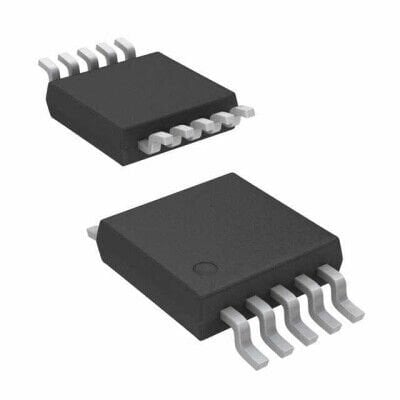

DG2535EDQ-T1-GE3 Vishay Siliconix 2:1 SPDT Anahtar Entegre Devre
124,36 TL
13,01 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
DG2535EDQ-T1-GE3
Stok Adedi
1
Fiyat
2,35 USD + KDV
DG2535EDQ-T1-GE3, Vishay Siliconix üretimi 2 devreli 2:1 SPDT analog anahtar/multiplexer entegresidir. 1.65V–5.5V tek besleme ile çalışır, maksimum 500 mOhm iletim direncine ve 120MHz -3dB bant genişliğine sahiptir. 10-MSOP (10-TFSOP uyumlu) SMD kılıfta, -40°C ile 85°C çalışma aralığında sunulur.
DG2535EDQ-T1-GE3 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) kılıfta üretilmiştir. 2 Circuit IC Switch 2:1 500mOhm 10-MSOP
| Ürün Kodu | DG2535EDQ-T1-GE3 |
| Packaging | Cut Tape (CT) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 500mOhm |
| -3db Bandwidth | 120MHz |
| Supplier Device Package | 10-MSOP |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Switch Time (Ton, Toff) (Max) | 78ns, 58ns |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 2 |
DG2535EDQ-T1-GE3 Datasheet dosyasına ulaşmak için tıklayınız.
