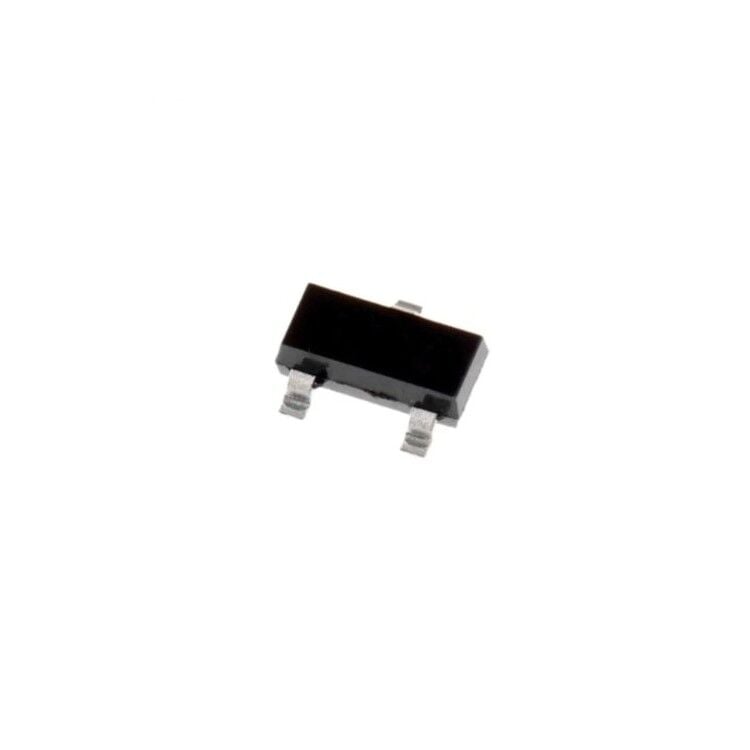

BAV74L (BAV74LT1G) 50V 200mA(DC) SOT23-3 Diyot
1,04 TL
0,11 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
BAV74L (BAV74LT1G) 50V 200mA(DC) SOT23-3 Diyot
| Kılıf | TO-236-3 SC-59 SOT-23-3 |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | SOT-23-3 (TO-236) |
| Hız | Small Signal - 200mA (Io) Any Speed |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Diode Configuration | 1 Pair Common Cathode |
