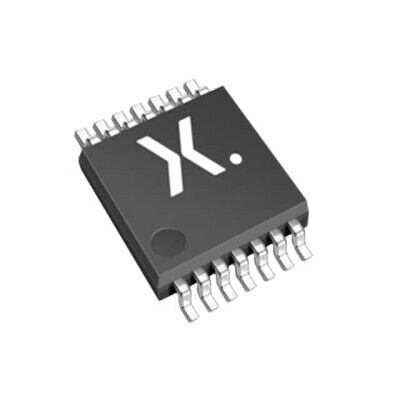

74LV7032APWJ 14-TSSOP Entegre Devre
30,89 TL
3,23 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
74LV7032APWJ 14-TSSOP (0.173", 4.40mm Width) kılıfta üretilmiştir. OR Gate IC 4 Channel Schmitt Trigger 14-TSSOP
| Ürün Kodu | 74LV7032APWJ |
| Packaging | Cut Tape (CT) |
| Features | Schmitt Trigger |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | OR Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 12mA, 12mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-TSSOP |
| Input Logic Level - High | 1.9V ~ 3.8V |
| Input Logic Level - Low | 0.1V ~ 0.55V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 2 µA |
74LV7032APWJ Datasheet dosyasına ulaşmak için tıklayınız.
