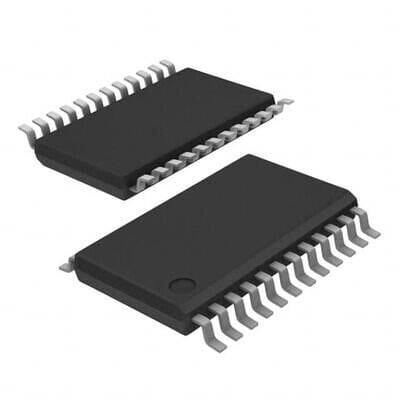

74HCT4067PW-Q100J 24-TSSOP Entegre Devre
113,24 TL
11,85 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
74HCT4067PW-Q100J
Stok Adedi
0
Fiyat
2,14 USD + KDV
74HCT4067PW-Q100J 24-TSSOP (0.173", 4.40mm Width) kılıfta üretilmiştir. 1 Circuit IC Switch 16:1 120Ohm 24-TSSOP
| Ürün Kodu | 74HCT4067PW-Q100J |
| Packaging | Cut Tape (CT) |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 120Ohm |
| -3db Bandwidth | 100MHz |
| Supplier Device Package | 24-TSSOP |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Switch Time (Ton, Toff) (Max) | 65ns, 60ns |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 800nA |
| Number of Circuits | 1 |
74HCT4067PW-Q100J Datasheet dosyasına ulaşmak için tıklayınız.
