74AUP1G74DC,125 8-VFSOP Entegre Devre
30,11 TL
3,15 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
74AUP1G74DC,125
Stok Adedi
0
Fiyat
0,57 USD + KDV

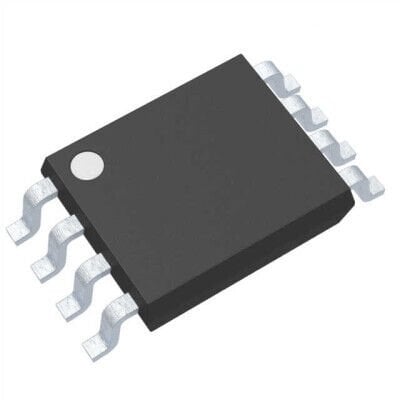

74AUP1G74DC,125 8-VFSOP (0.091", 2.30mm Width) kılıfta üretilmiştir. Flip Flop 1 Element D-Type 1 Bit Positive Edge 8-VFSOP (0.091", 2.30mm Width)
| Ürün Kodu | 74AUP1G74DC,125 |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Output Type | Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 0.8V ~ 3.6V |
| Current - Quiescent (Iq) | 500 nA |
| Current - Output High, Low | 4mA, 4mA |
| Trigger Type | Positive Edge |
| Clock Frequency | 315 MHz |
| Input Capacitance | 0.6 pF |
| Supplier Device Package | 8-VSSOP |
| Max Propagation Delay @ V, Max CL | 5.8ns @ 3.3V, 30pF |
| Number of Bits per Element | 1 |
74AUP1G74DC,125 Datasheet dosyasına ulaşmak için tıklayınız.
