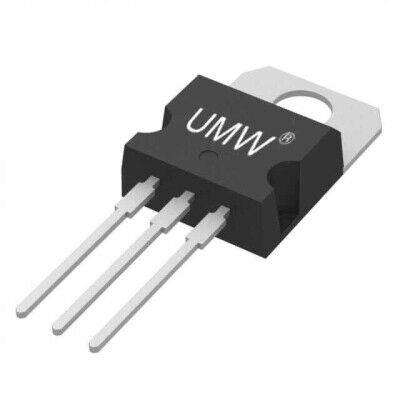

UMW L7809CV_UMW TO-220-3 9V 1.2A Regülatör Entegre Devre
34,04 TL
3,56 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
L7809CV_UMW
Stok Adedi
1
Fiyat
0,64 USD + KDV
L7809CV_UMW, TO-220-3 kılıfta 9V sabit pozitif çıkış veren lineer voltaj regülatör entegresidir. 35V maksimum giriş gerilimi ve 1.2A çıkış akımı desteği sunar. Aşırı sıcaklık ve kısa devre korumasına sahiptir, through-hole montaja uygundur.
L7809CV_UMW TO-220-3 kılıfta üretilmiştir. Linear Voltage Regulator IC Positive Fixed 1 Output 1.2A TO-220
| Ürün Kodu | L7809CV_UMW |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 1.2A |
| Current - Quiescent (Iq) | 6 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
