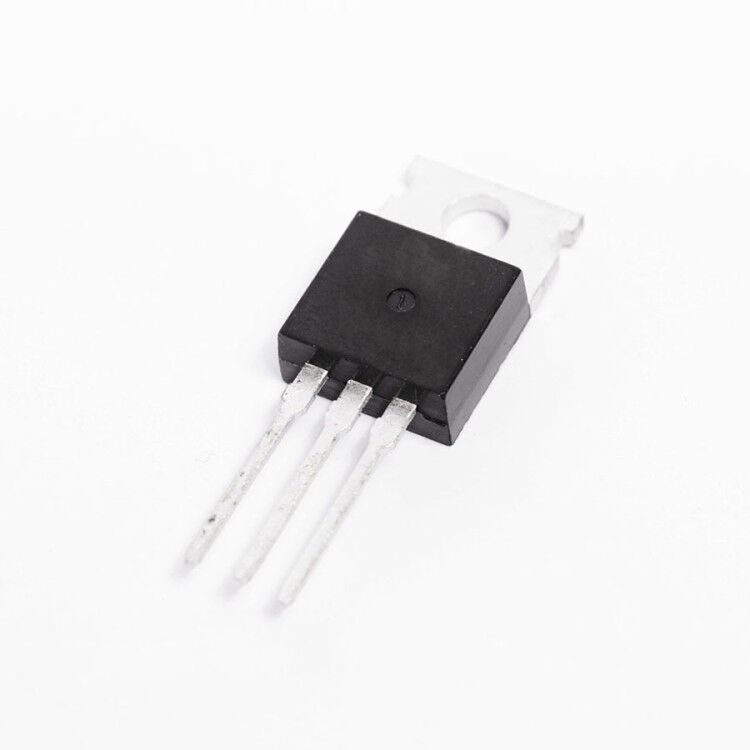

D8020L 12.7A 800V TO-220 Genel Amaçlı Diyot
182,37 TL
19,08 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
D8020L 12.7A 800V TO-220 Genel Amaçlı Diyot
| Kılıf | TO-220-3 Isolated Tab |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-220 Isolated Tab |
| Hız | Standard Recovery 500ns 200mA (Io) |
| Current - Reverse Leakage @ Vr | 20 µA @ 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 12.7 A |
| Reverse Recovery Time (trr) | 4 µs |
| Current - Average Rectified (Io) | 12.7A |
| Diode Type | Standard |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
