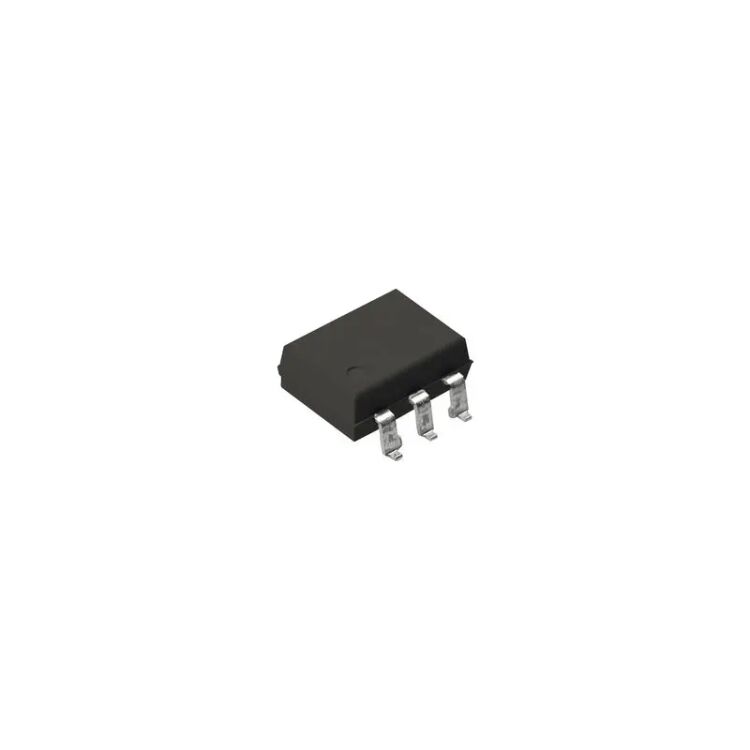

4N25S-TA1, SMD-6 Entegre Devre
20,00 TL
2,09 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
4N25S-TA1, 4N25, Genel Amaçlı Fototransistör Çıkışlı Optokuplör Entegre SMD-6 Kılıf Entegre
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Çalışma Sıcaklığı | -55°C ~ 100°C |
| Çıkış Tipi | Transistor with Base |
| Current - Output / Channel | 100mA |
| Number of Channels | 1 |
| Input Type | DC |
| Current - DC Forward (If) (Max) | 80 mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Rise / Fall Time (Typ) | 3µs- 3µs |
| Voltage - Output (Max) | 30V |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 20% @ 10mA |
| Vce Saturation (Max) | 500mV |
| Catalog | Optoisolators - Transistor- Photovoltaic Output |
