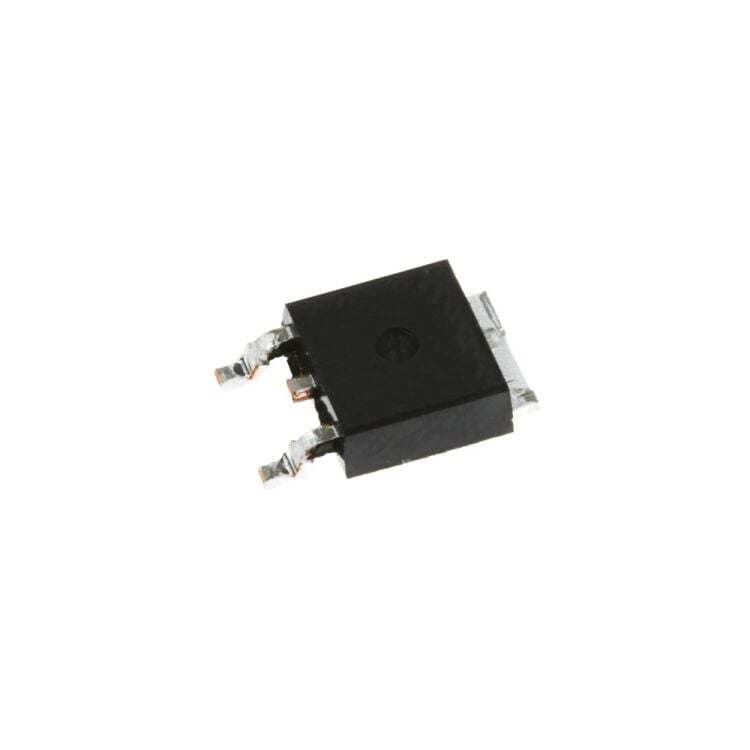

WND08P16DJ (WND08P16D) 1600V 8A TO252 (DPAK) Diyot
34,91 TL
3,65 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
WND08P16DJ
Stok Adedi
50
Fiyat
0,67 USD + KDV
WND08P16DJ (WND08P16D) 1600V 8A TO252 (DPAK) Diyot
| Kılıf | TO-252-3 DPak (2 Leads + Tab) SC-63 |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | DPAK |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 8 A |
| Reverse Recovery Time (trr) | - |
| Current - Average Rectified (Io) | 8A |
| Diode Type | Standard |
| Operating Temperature - Junction | 150°C |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
