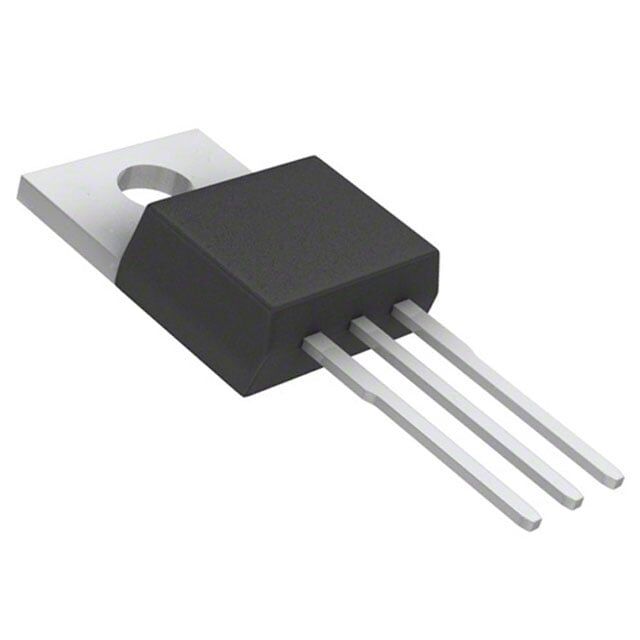

UA7824CKCS 24V 1.5A TO-220-3 Entegre Devre
80,76 TL
8,45 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
UA7824CKCS
Stok Adedi
0
Fiyat
1,50 USD + KDV
Texas Instruments UA7824CKCS, 24V sabit çıkışlı pozitif lineer voltaj regülatörüdür. TO-220-3 kılıfta, through-hole montaja uygundur ve 1.5A çıkış akımı sağlar. Aşırı akım, aşırı sıcaklık, ters polarite ve kısa devre korumaları bulunur.
UA7824CKCS IC REG LINEAR 24V 1.5A TO220-3
| Ürün Kodu | UA7824CKCS |
| Control Features | - |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-220-3 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| PSRR | 78dB (120Hz) |
| Supplier Device Package | TO-220-3 |
| Voltage - Input (Max) | 38V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 24V |
| Voltage Dropout (Max) | 2V @ 1A |
UA7824CKCS Datasheet dosyasına ulaşmak için tıklayınız.
