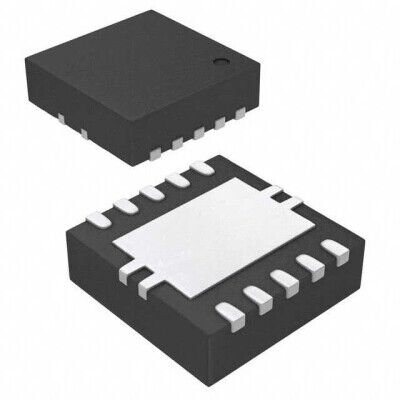

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TPS7A9401DSCR 10-WSON (3x3) Entegre Devre
TPS7A9401DSCR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS7A9401DSCR 10-WSON (3x3) Entegre Devre Hakkında
Texas Instruments TPS7A9401DSCR, 10-WSON (3x3) / 10-WFDFN Exposed Pad kılıfta ayarlanabilir pozitif lineer voltaj regülatörüdür. 5.7V maks. giriş, 0V–5.5V çıkış aralığı ve 1A çıkış akımı sunar. Enable, Power Good, Soft Start, akım limiti ile aşırı akım/sıcaklık ve UVLO koruma özelliklerine sahiptir.
TPS7A9401DSCR 10-WFDFN Exposed Pad kılıfta üretilmiştir. Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 10-WSON (3x3)
| Ürün Kodu | TPS7A9401DSCR |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.7V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.24V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 22 mA |
| Current - Supply (Max) | 51 mA |
| PSRR | 51dB (1MHz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x3) |
TPS7A9401DSCR Datasheet dosyasına ulaşmak için tıklayınız.
