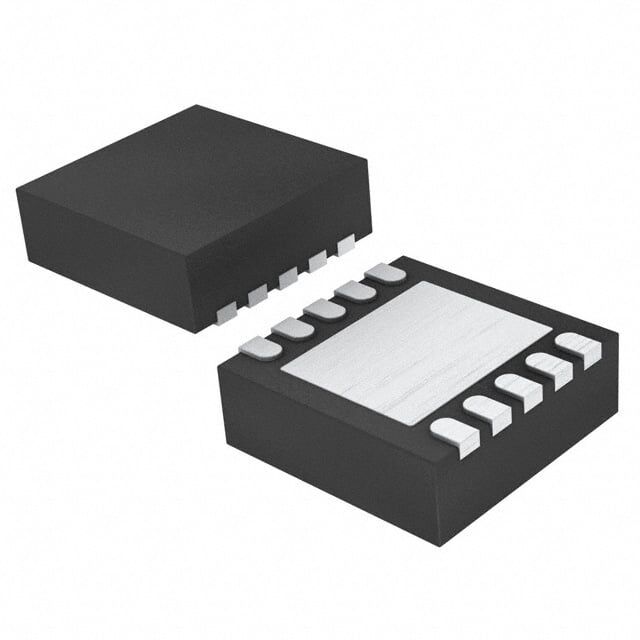

TPS7A9101DSKT Texas Instruments 10-SON Entegre Devre
TPS7A9101DSKT
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS7A9101DSKT Texas Instruments 10-SON Entegre Devre Hakkında
TPS7A9101DSKT, Texas Instruments üretimi ayarlanabilir pozitif lineer regülatör entegresidir. 0.8V–5.2V çıkış aralığı, 6.5V maksimum giriş gerilimi ve 1.05A çıkış akımı sunar. 10-SON (2.5x2.5) SMD pakettedir ve -40°C ile 125°C çalışma sıcaklığı aralığına sahiptir.
TPS7A9101DSKT IC REG LIN POS ADJ 1.05A 10SON
| Ürün Kodu | TPS7A9101DSKT |
| Control Features | - |
| Current - Output | 1.05A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 10-WFDFN Exposed Pad |
| Part Status | Active |
| Protection Features | - |
| PSRR | 40dB (1MHz) |
| Supplier Device Package | 10-SON (2.5x2.5) |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | 5.2V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage Dropout (Max) | 0.2V @ 1A |
TPS7A9101DSKT Datasheet dosyasına ulaşmak için tıklayınız.
