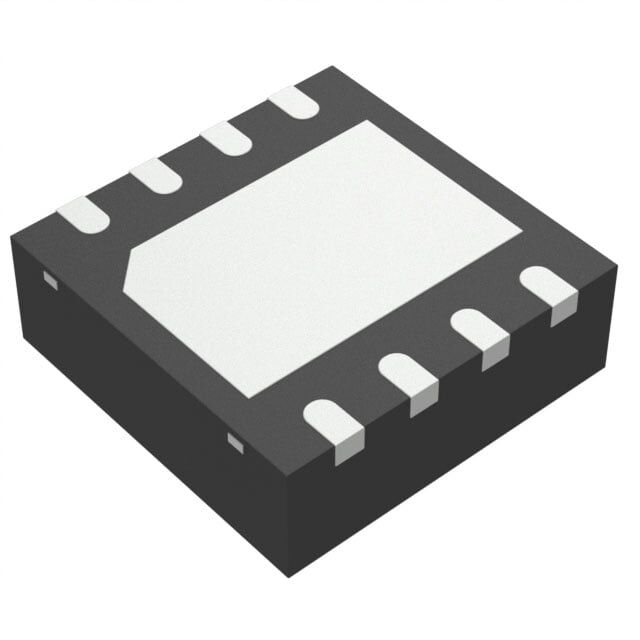

TPS7A4901DRBT Texas Instruments 8-SON (3x3) Entegre Devre
TPS7A4901DRBT
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS7A4901DRBT Texas Instruments 8-SON (3x3) Entegre Devre Hakkında
TPS7A4901DRBT, Texas Instruments üretimi pozitif ayarlanabilir lineer LDO regülatör entegresidir. 35V girişe kadar çalışır, çıkış gerilimi 1.194V ile 33V arasında ayarlanabilir ve 150mA çıkış akımı sağlar. 8-SON (3x3) / 8-VDFN exposed pad SMD pakettedir; enable pini ve aşırı akım, aşırı sıcaklık, UVLO korumaları bulunur.
TPS7A4901DRBT IC REG LINEAR POS ADJ 150MA 8SON
| Ürün Kodu | TPS7A4901DRBT |
| Control Features | Enable |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 800 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 8-VDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 72dB (120Hz) |
| Supplier Device Package | 8-SON (3x3) |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Max) | 33V |
| Voltage - Output (Min/Fixed) | 1.194V |
| Voltage Dropout (Max) | 0.6V @ 150mA |
TPS7A4901DRBT Datasheet dosyasına ulaşmak için tıklayınız.
