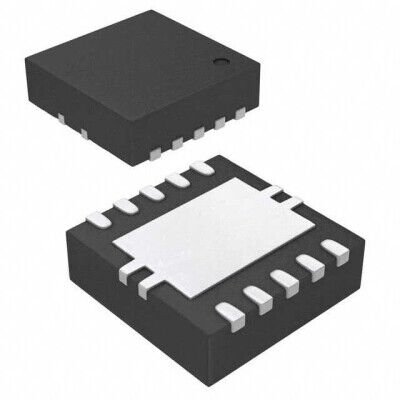

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TPS7A3901DSCR Texas Instruments 10-WSON Entegre Devre
TPS7A3901DSCR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS7A3901DSCR Texas Instruments 10-WSON Entegre Devre Hakkında
TPS7A3901DSCR, Texas Instruments üretimi ayarlanabilir pozitif ve negatif çıkışlı çift lineer regülatör entegresidir. 150 mA çıkış akımı, enable ve soft-start özellikleri ile UVLO ve aşırı sıcaklık koruması sunar. 10-WSON (3x3) SMD pakettedir ve giriş gerilimi ±33 V seviyesine kadar destekler.
TPS7A3901DSCR IC REG LINEAR POS/NEG ADJ 10WSON
| Ürün Kodu | TPS7A3901DSCR |
| Control Features | Current Limit, Enable, Soft Start |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 904 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 2 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive and Negative |
| Output Type | Adjustable |
| Package / Case | 10-WFDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 69dB (120Hz) |
| Supplier Device Package | 10-WSON (3x3) |
| Voltage - Input (Max) | ±33V |
| Voltage - Output (Max) | 30V, -30V |
| Voltage - Output (Min/Fixed) | 1.2V, 0V |
| Voltage Dropout (Max) | 0.5V @ 150mA |
TPS7A3901DSCR Datasheet dosyasına ulaşmak için tıklayınız.
