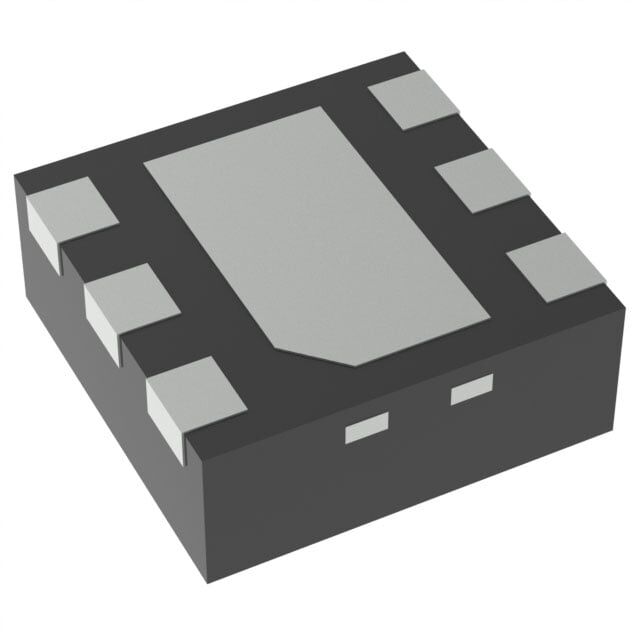

TPS7A2633DRVR 3.3V 500mA 6-WSON Entegre Devre
83,99 TL
8,79 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS7A2633DRVR
Stok Adedi
0
Fiyat
1,56 USD + KDV
Texas Instruments TPS7A2633DRVR, 3.3V sabit çıkışlı 500mA lineer regülatör entegresidir. Enable ve Power Good kontrol özelliklerine sahiptir; 18V’a kadar giriş gerilimi destekler. 6-WSON (2x2) SMD pakettedir ve aşırı akım, aşırı sıcaklık ve UVLO korumaları içerir.
TPS7A2633DRVR IC REG LINEAR 3.3V 500MA 6WSON
| Ürün Kodu | TPS7A2633DRVR |
| Control Features | Enable, Power Good |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 4.5 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, UVLO |
| PSRR | 75dB ~ 52dB (10Hz ~ 1kHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.33V @ 500mA |
TPS7A2633DRVR Datasheet dosyasına ulaşmak için tıklayınız.
