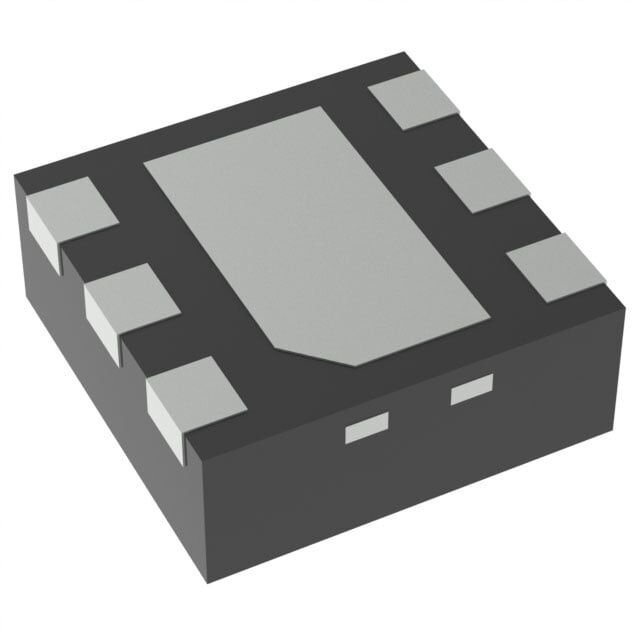

TPS7A2533DRVR 3.3V 300mA 6-WSON Entegre Devre
71,07 TL
7,44 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS7A2533DRVR
Stok Adedi
0
Fiyat
1,32 USD + KDV
Texas Instruments TPS7A2533DRVR, 18V’a kadar giriş kabul eden 3.3V sabit çıkışlı 300mA lineer regülatördür. Enable ve Power Good kontrol pinlerine sahiptir, 6-WSON (2x2) SMD pakettedir. Aşırı akım ve aşırı sıcaklık korumaları bulunur.
TPS7A2533DRVR IC REG LINEAR 3.3V 300MA 6WSON
| Ürün Kodu | TPS7A2533DRVR |
| Control Features | Enable, Power Good |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 4.5 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75dB ~ 52dB (10Hz ~ 1kHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.21V @ 300mA |
TPS7A2533DRVR Datasheet dosyasına ulaşmak için tıklayınız.
