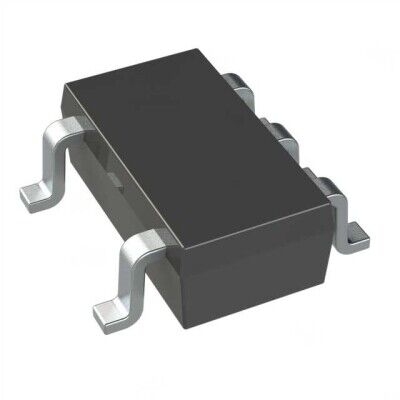

TPS7A2401DBVR Texas Instruments SOT-23-5 Entegre Devre
46,86 TL
4,90 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS7A2401DBVR
Stok Adedi
0
Fiyat
0,87 USD + KDV
TPS7A2401DBVR, Texas Instruments üretimi ayarlanabilir pozitif lineer (LDO) regülatör entegresidir. 18V maksimum giriş, 1.24V–17.75V çıkış aralığı ve 200mA çıkış akımı sunar; Enable pini bulunur. SOT-23-5 (SC-74A/SOT-753) SMD pakettedir ve aşırı akım, aşırı sıcaklık ile UVLO korumalarına sahiptir.
TPS7A2401DBVR IC REG LIN POS ADJ 200MA SOT23-5
| Ürün Kodu | TPS7A2401DBVR |
| Control Features | Enable |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 4.5 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 75dB ~ 62dB (10Hz ~ 1kHz) |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Max) | 17.75V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage Dropout (Max) | 0.25V @ 200mA |
TPS7A2401DBVR Datasheet dosyasına ulaşmak için tıklayınız.
