Görseller temsilidir, tam özellikler için datasheet'e bakınız.

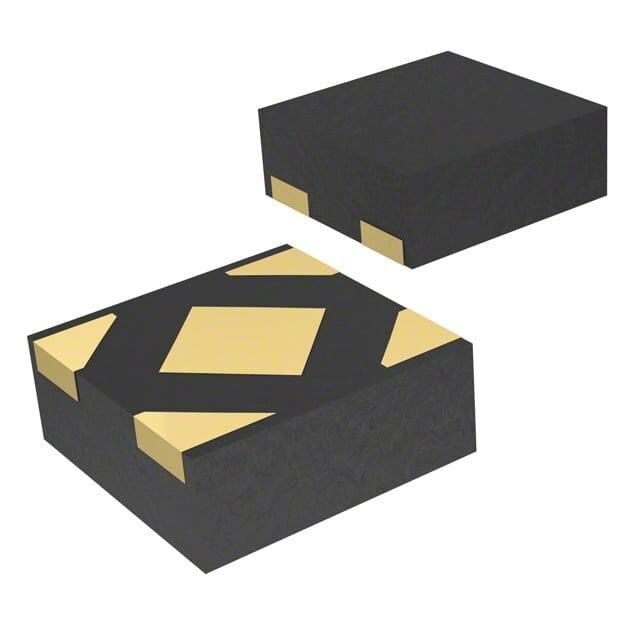

TPS7A2033PDQNR Texas Instruments 3.3V 300mA 4-X2SON Entegre Devre
TPS7A2033PDQNR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS7A2033PDQNR Texas Instruments 3.3V 300mA 4-X2SON Entegre Devre Hakkında
TPS7A2033PDQNR, Texas Instruments üretimi 3.3V sabit çıkışlı 300mA lineer regülatör entegresidir. Enable pinine sahiptir ve 4-X2SON (1x1) SMD pakettedir. Aşırı akım, aşırı sıcaklık ve UVLO korumaları bulunur, çalışma sıcaklığı -40°C ile 125°C aralığındadır.
TPS7A2033PDQNR IC REG LINEAR 3.3V 300MA 4X2SON
| Ürün Kodu | TPS7A2033PDQNR |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 15 µA |
| Current - Supply (Max) | 2 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 4-XDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 65dB ~ 40dB (100Hz ~ 1MHz) |
| Supplier Device Package | 4-X2SON (1x1) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.14V @ 300mA |
TPS7A2033PDQNR Datasheet dosyasına ulaşmak için tıklayınız.
